FETCH ROBOTICS

Robotics Software Intern

Summer 2016 - Fall 2016




1st Project

Development of an algorithm for creating sphere representation of complex objects which allows faster collision checking.





Purpose



  • Motion planning involves a lot of collision checking.
  • Reduction of the collision checking calculation is important for the real-time perception-based motion planning.
  • Therefore we would like to simplify meshes of robots into spheres.




Current Method

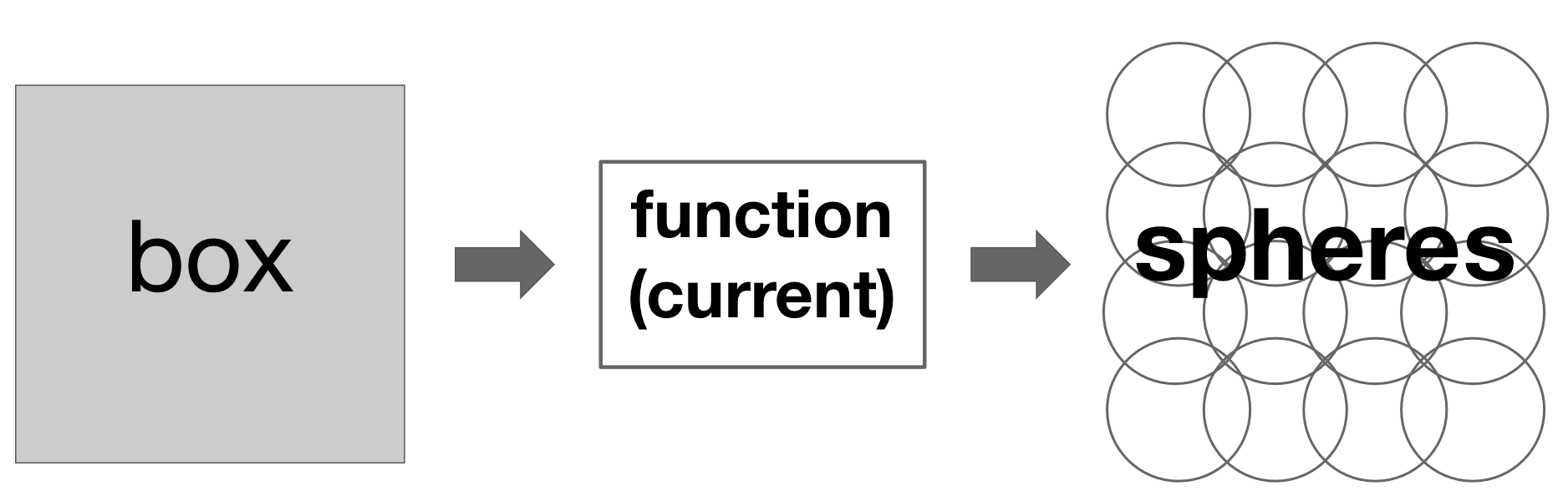

Artboard 3@2x.png
  • Current method takes only box shapes as inputs. It cannot deal with the objects of general shapes.
  • Output of the current method is just a series of spheres (array) which are not efficient for the collision checking calculation.




Approach



Artboard 4@2x.png
  • New method takes general shapes of objects as inputs.
  • Output of the new method is a hierarchical tree structure of spheres (sphere-tree) which is efficient for the collision checking calculation.
Hierarchical tree structure of spheres (sphere-tree)

Hierarchical tree structure of spheres (sphere-tree)





Number of Calculations for Collision Checking (Ex.)





Result

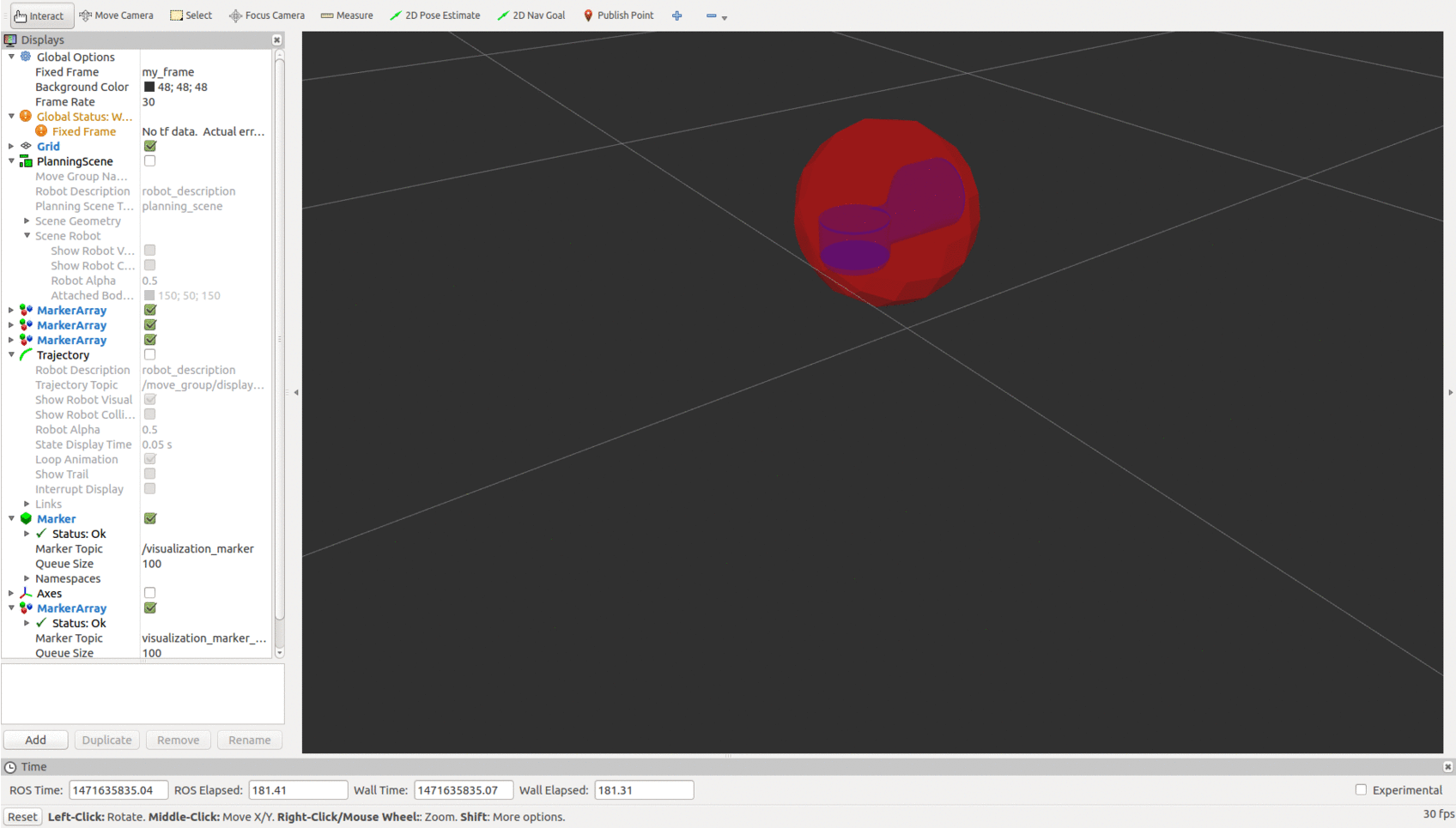

Bunny

Bunny

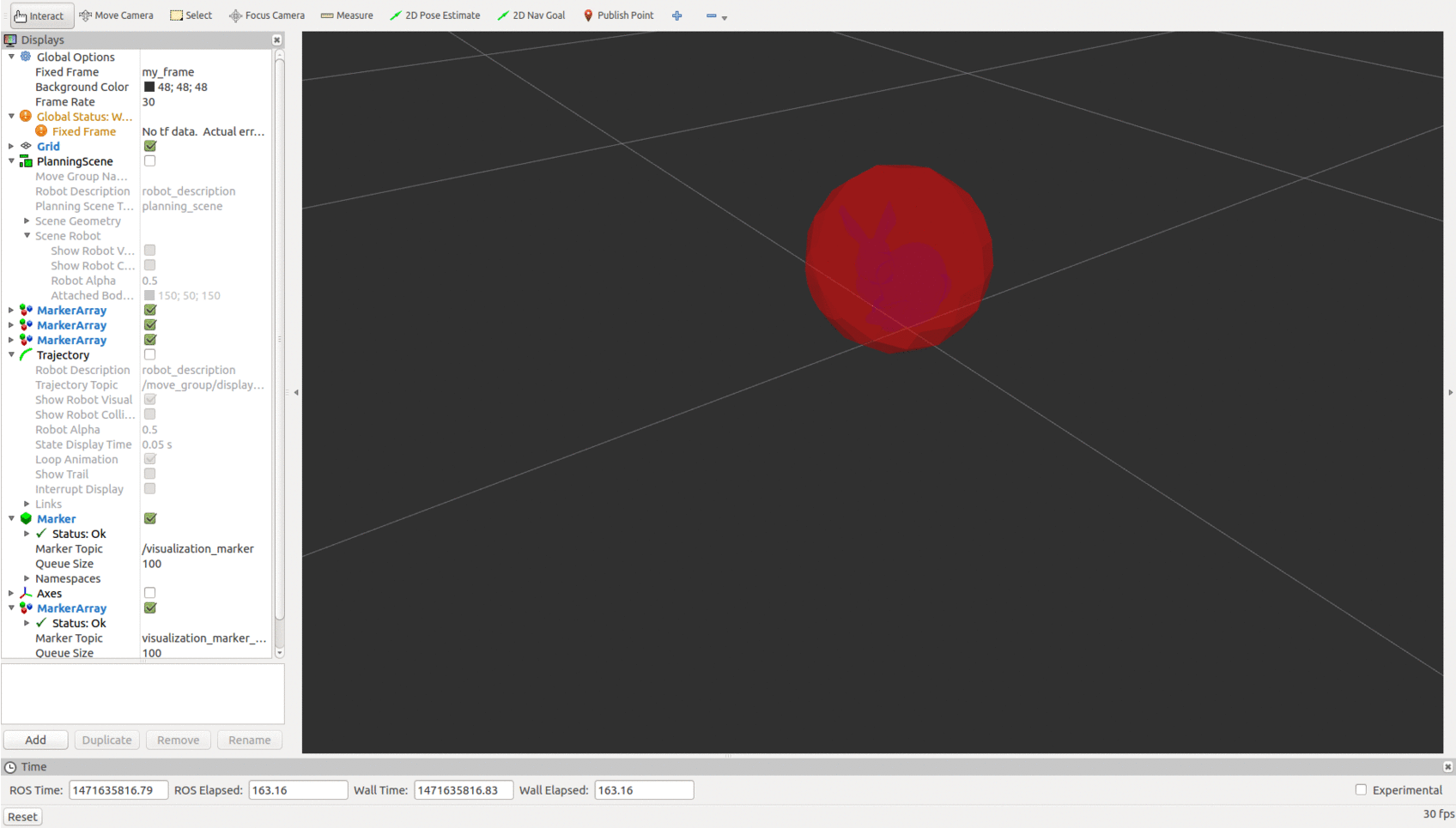

Elbow Flex Link

Elbow Flex Link



Artboard 5@2x.png




2ND PROJECT

Joystick teleoperation of the end-effector of Fetch




PURPOSE


Artboard 6@2x.png


  • There are three kinds of control for manipulation: Pose(position), twist(velocity), wrench(torque).
  • It is necessary to enable a joystick to control the end-effector to check if the controller is working fine.




APPROACH


Reference frame (body: blue, End-effector: red)

Reference frame (body: blue, End-effector: red)



  • Mapping linear and angular velocity to key #1, #2, and tilting motions.
  • Converting reference frame using key #11 and #9.
  • Using KDL library to solve 7 DOF arm kinematics.



RESULT



Code can be found at Fetch Robotics Github as an open source. Fetch users are now able to control the end-effector using the joystick.
