Pedestrian Crossing Aid Device

Development of Pedestrian Crossing Aid Device for The Visually Impaired

Undergraduate Research Program (URP)

Summer 2013 - Fall 2013

Hanjun Song, Ponghiran Wachirawit




Publication

[C-6] H. Song, P. Wachirawit, “Pedestrian crossing aid device for the visually impaired,” in Young Researchers Consortium, 2014 International Conference on Computers Helping People with Special Needs, Paris, France, Jul. 2014. [pdf] [video]


Demo Video


Motivation

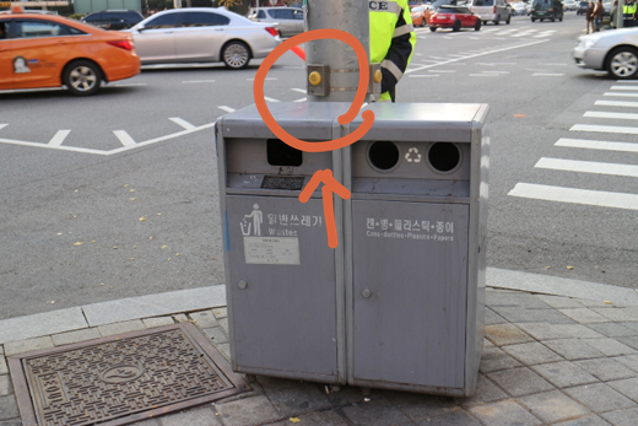

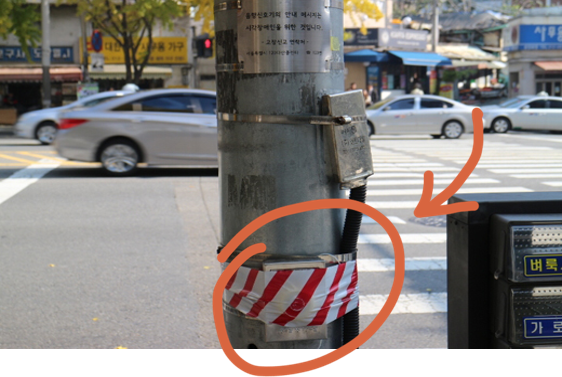

Sound generating systems are installed only 7.2% of crosswalks in South Korea and 46.9% of those lack of regular maintenance, possibility of safe crossing is remarkably low for the visually impaired.




Purpose

This research aims to establish a real-time robust visual object detection algorithm and develop a pedestrian crossing aid device based on that algorithm.





Concept Design






Development Process





Pedestrian signal detection and tracking



Flowchart of detection and tracking system

Flowchart of detection and tracking system

Visualization of detection process

Visualization of detection process

  • Detection module is composed of Color-based segmentation and machine learning recognition.

  • Continuously Adaptive Mean Shift is used for tracking module.





Color Interpretation

Flow diagram of color interpretation

Flow diagram of color interpretation



Visualization of color interpretation

Visualization of color interpretation

  • Cascade color segmentation is used for speed and reliability.

  • Window setting method is used to shorten the processing time.





User Interface



Finite state machine

Finite state machine



  • System input: presence of the pedestrian signal and its color

  • System output: guiding voice





Hardware Implementation





Result

  • Total Ground Truth: 1850 images

  • Detection Rate = 0.7735 (FAR = 0.0124, FPR = 0.2189, Specificity = 0)

  • Color Interpretation Accuracy = 0.9622

  • Overall system accuracy = 0.7443
